Air Quality
The Air Quality Monitoring template represents a solution for general air pollution monitoring and provides general recommendations in a user-friendly manner. The main metric for controlling the level of air pollution is AQI.
AQI is calculated based on Ozone, PM2.5, PM10, CO, SO2 and NO2 sensor readings. Solution supports sensors that report all, or a limited number, of the readings.
Also, when installing this solution, the possibility of managing air quality control sensors will be provided.
Solution Description
The Air Quality Monitoring template is a pollution monitoring service in cities that can be part of a Smart City. AQI Monitoring allows you to monitor the level of air pollution online and is defined as the highest value calculated for each pollutant as follows:
- Identify the highest concentration among all of the monitors within each reporting area: Ozone (ppm), PM2.5 (µg/m3), PM10 (µg/m3), CO (ppm), SO2 (ppb) and NO2 (ppb)
- Define two breakpoints that contain the concentration for the AQI which are required to apply the correct values to calculate the formula.
- Calculate the index based on the formula determination of AQI.
Once the index is defined, the system will display the corresponding legend, colour and recommendations.
Benefits
A ready-made solution for your needs with all the configured conditions for your sensors, which can also be part of a Smart City solution.
What's Available

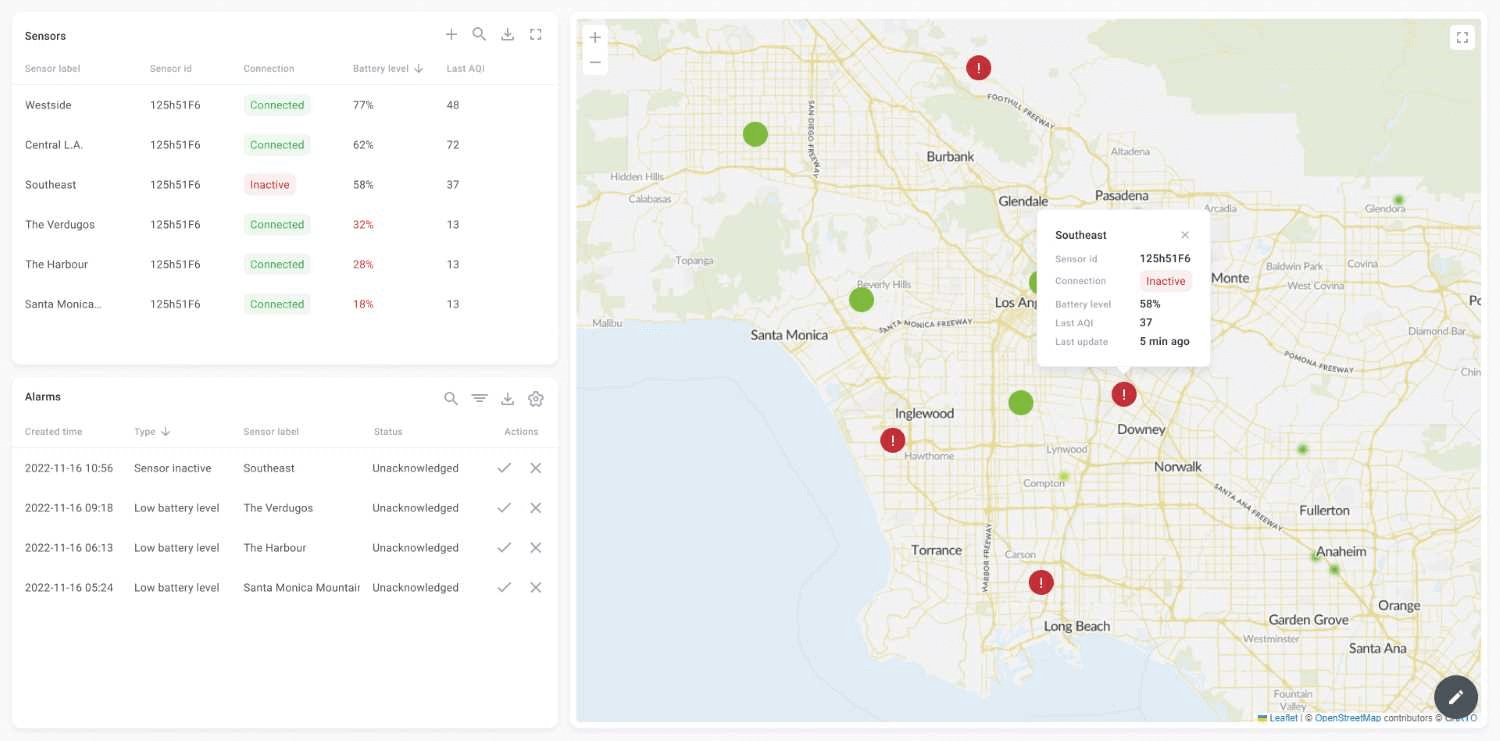

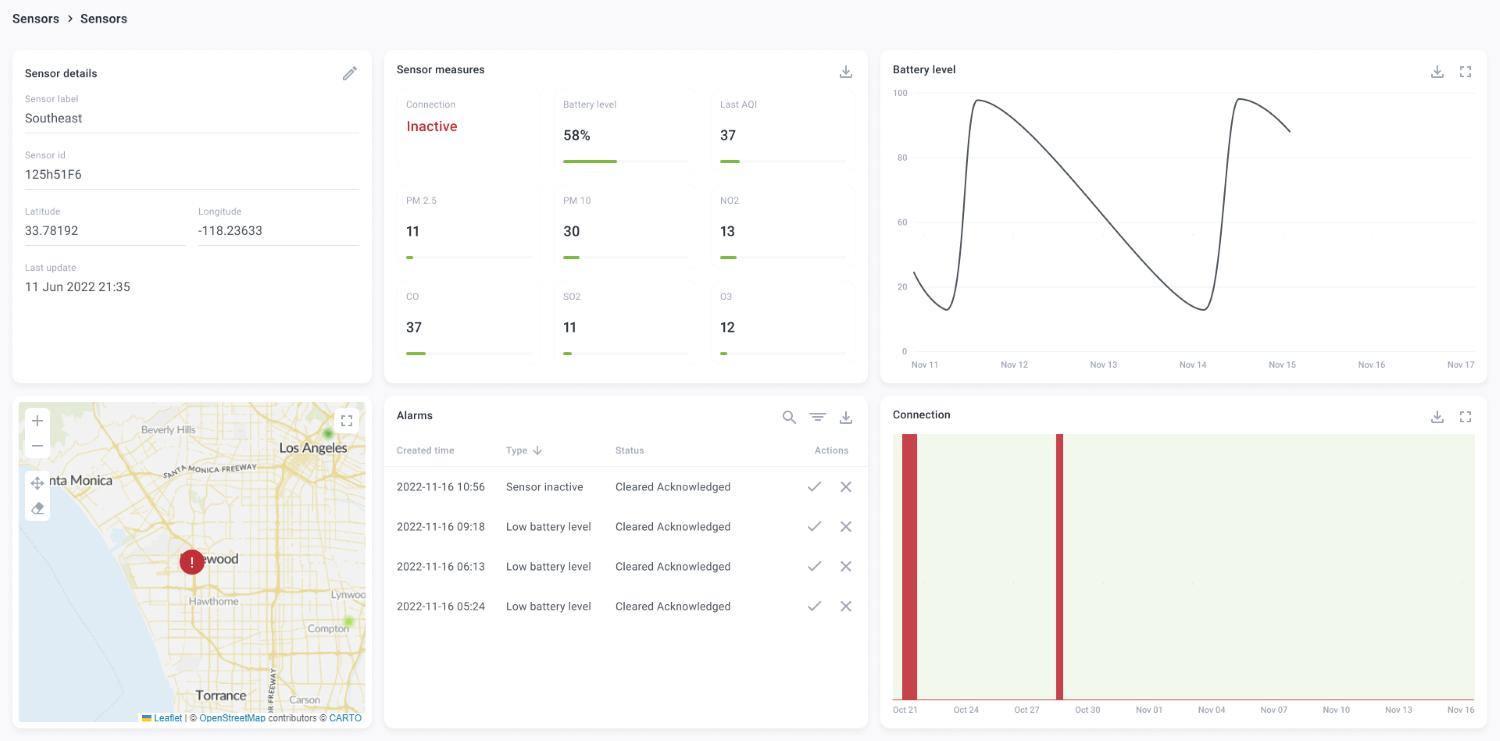

An accessible dashboard for employees: all sensors are displayed on an interactive map in a user-friendly interface. AQI is displayed with recommendations for sensitive groups of people. A dashboard of management sensors is available, as well as a widget with basic alerts that respond to a certain change in environmental conditions.
